Manage your EV chargers. Skip the big contract.
Liberty Plugins Hydra™
A good CSMS is a necessity for any workplace, multi-unit or fleet charging system. Period.
Hydra™ offers unrivaled flexibility and control to site owners who need to manage existing EVSE, or who want to integrate EVSE from different manufacturers. Hydra CSMS is available under Liberty’s lightweight, no-lock-in fee structure.
What is Hydra?
Hydra is a CSMS in a box: You connect your chargers to Hydra, and we connect your chargers to the internet. From the online Liberty Access Platform, you can monetize, meter consumption and manage user access to connected EVSE.
Because Hydra communicates on behalf of the chargers you connect, you can use any charger you like: no need to buy or rent proprietary hardware from a service provider. If you already have chargers, you can keep them. And, because you own your hardware, you get to keep using them even if you stop working with us. Try that with the other guys.
Mini Case Study

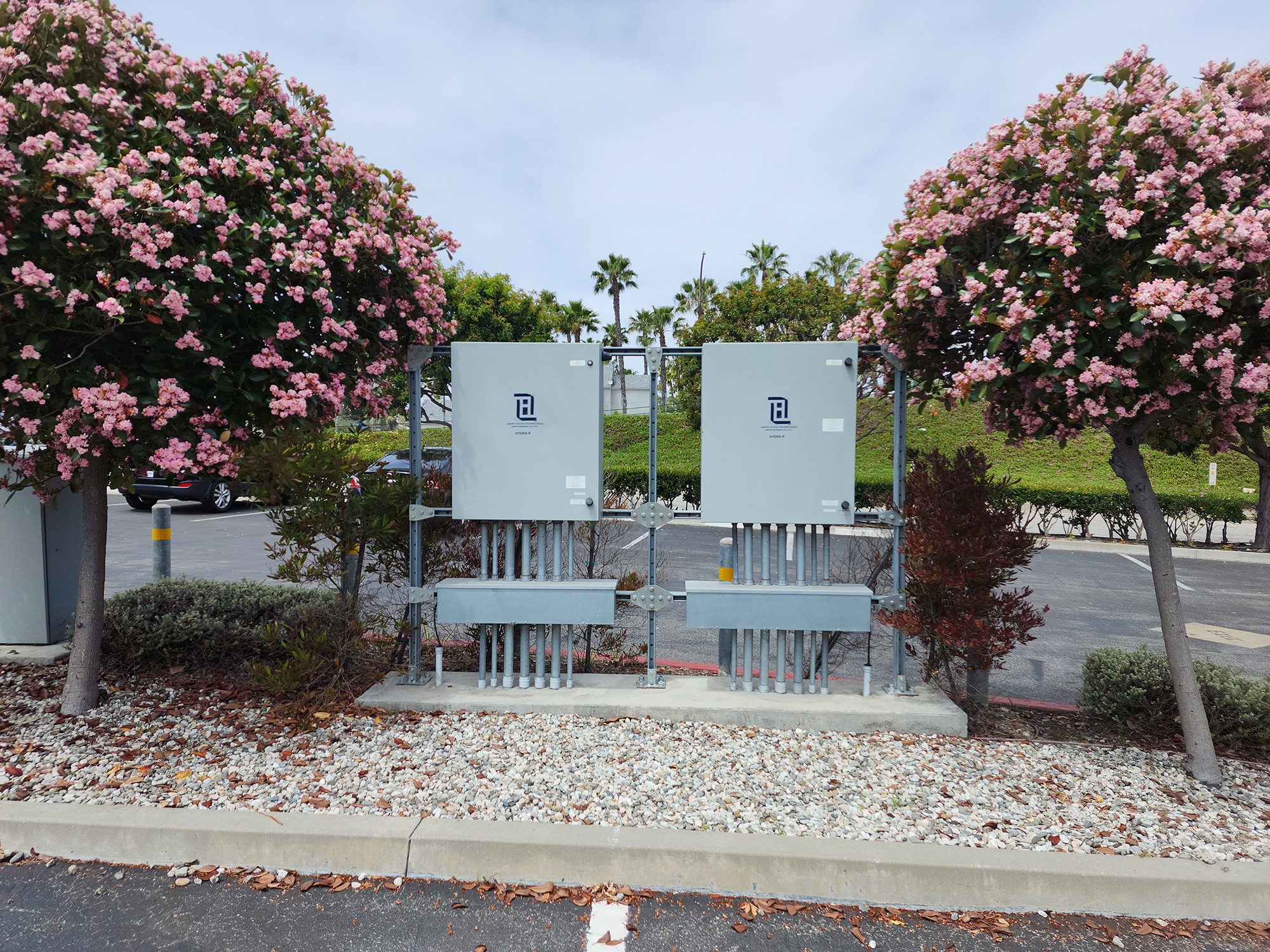

This site has 45x chargers from various manufacturers connected to 5x Hydra-R™ units. In these images, 20x pedestal-mounted Clipper Creek HCS-40 units are controlled by two of the visible Hydra units.
Thanks to Hydra’s onboard, RSA compliant revenue-grade meters, this CA-based operator banks Low Carbon Fuel Subsidy (LCFS) credits each year at a profit.
Ask us how you can do the same >
Solve Integration Problems
When combined with the Liberty Access Platform, Hydra becomes an incredibly powerful tool for EVSE integrators solving challenging problems for their customers. Combine 40A-80A Level-2 EV charge stations that may already be on-site with new equipment like DC-fast chargers, and control all of it from one intuitive dashboard.
Powerful Options for Operators
Control who has access to your EVSE via RFID, keypad or via mobile app. Open it up to the public or lock it down for select users at select times. Charge users for consumption at point of sale, bill them later yourself using tools in the Liberty Access Platform, or let us handle it. Liberty’s platform is flexible enough to handle practically any CSMS need.
Hydra-RS and Hydra-R Specifications
| Hydra Model | Hydra-RS 2 | Hydra-RS 4 | Hydra-R 6 | Hydra-R 8 | Hydra-R 10 |
| EVSE Circuits | 2 | 4 | 6 | 8 | 10 |
| Dimensions | 16 x 20 x 8 in | 30 x 36 x 8 in | |||
| Weight | 60 Lbs | 100 Lbs | |||
| Max current per circuit | 32A | ||||
| Max Conductor Size | 8 AWG | ||||
| EVSE Circuit Voltage | 120 - 240 VAC | ||||
| Control Circuit | 120 VAC, 1A | ||||
| Enclosure | NEMA 4, 14ga Steel | ||||
| Compatible EVSE | Any unlocked 40A Level-2 EVSE, non-networked preferred | ||||
| Communications | 4G GSM/CDMA modem or hardwired ethernet | ||||
| Compliance | UL-916, OCPP, OpenADR, California RSA | ||||
Take the Next Step with Liberty Plugins
Contact us today to learn more about our Hydra™ controllers or to schedule a demonstration.
